The sophisticated Skyrme-type EDF, which is expressed as an effective zero-range force between nucleons with density-dependent and momentum-dependent terms, has achieved remarkable success in describing various physical phenomena [48, 49, 61−75]. In general, the effective force sets are determined by calibrating the properties of the finite nuclei and symmetric nuclear matter at saturation density
$ \rho_{0} $ ($ \approx0.16\; \mathrm{fm}^{-3} $ ). Notably, it has been mentioned that some interactions can be used to characterize the bulk properties of finite nuclei and infinite nuclear matter (see, e.g., [76, 77] for details). In this work, the Skyrme-like effective interaction has been recalled as follows [78−80]:$ \begin{aligned}[b] V(\mathbf{r}_{1},\mathbf{r}_{2})=\;&t_{0}(1+x_{0}\mathbf{P}_{\sigma})\delta(\mathbf{r})\\ &+\frac{1}{2}t_{1}(1+x_{1}\mathbf{P}_{\sigma})\left[\mathbf{P}'^{2}\delta(\mathbf{r})+\delta(\mathbf{r})\mathbf{P}^{2}\right]\\ &+t_{2}(1+x_{2}\mathbf{P}_{\sigma})\mathbf{P}'\cdot\delta(\mathbf{r})\mathbf{P}\\ &+\frac{1}{6}t_{3}(1+x_{3}\mathbf{P}_{\sigma})[\rho(\mathbf{R})]^{\alpha}\delta(\mathbf{r})\\ &+\mathrm{i}W_{0}\mathbf{\sigma}\cdot\left[\mathbf{P}'\times\delta(\mathbf{r})\mathbf{P}\right]. \end{aligned} $
(1) Here,
$ \mathbf{r}=\mathbf{r}_{1}-\mathbf{r}_{2} $ and$ \mathbf{R}=(\mathbf{r}_{1}+\mathbf{r}_{2})/2 $ are related to the positions of two nucleons$ \mathbf{r}_{1} $ and$ \mathbf{r}_{2} $ ;$ \mathbf{P}=(\nabla_{1}-\nabla_{2})/2\mathrm{i} $ is the relative momentum operator and$ \mathbf{P'} $ is its complex conjugate acting on the left; and$ \mathbf{P_{\sigma}}=(1+\vec{\sigma}_{1}\cdot\vec{\sigma}_{2})/2 $ is the spin exchange operator that controls the relative strength of the$ S=0 $ and$ S=1 $ channels for a given term in the two-body interactions, with$ \vec{\sigma}_{1(2)} $ being the Pauli matrices. The last term represents the spin-orbit force where$ \sigma=\vec{\sigma}_{1}+\vec{\sigma}_{2} $ . The quantities α,$ t_{i} $ , and$ x_{i} $ ($ i=0 $ -3) represent the parameters of the Skyrme forces used in this work.Solving the Schrödinger-like equations by self-consistent iteration leads to the eigenenergies and wave functions of the constituent nucleons. The pairing correlations can be generally treated either by the BCS method or by the Bogoliubov transformation [45, 46, 81]. In this work, the spherical Skyrme Hartree-Fock-Bogoliubov (HFB) approach is utilized for all the calculations [82]. The density-dependent zero-range pairing force is employed as follows [83]:
$ V_{\mathrm{pair}}(\mathbf{r}_{1},\mathbf{r}_{2})=V_{0}\left[1-\eta\left(\frac{\rho(\mathbf{r})}{\rho_{0}}\right)\right]\delta(\mathbf{r}_{1}-\mathbf{r}_{2}), $
(2) where
$ \rho(\mathbf{r}) $ is the baryon density in the coordinate space and$ \rho_{0}=0.16\; \mathrm{fm}^{-3} $ represents the nuclear saturation density. The value of η is taken as$ 0.0 $ ,$ 0.5 $ , or$ 1.0 $ for volume-, mixed-, or surface-type pairing interactions, respectively. The quantity$ V_{0} $ is adjusted by calibrating the empirical pairing gaps with the three-point formula [47, 83], and the values of$ V_{0} $ are 188.2, 370.2, and 509.6 MeV fm3 for the corresponding volume-, mixed-, and surface-type pairing interactions, respectively.After achieving the convergence of the total binding energy, the root-mean square (rms) radii of the neutron and proton matter, and the neutron-skin thickness can be obtained naturally. The quantity of nuclear charge radius (
$ R_{\mathrm{ch}} $ ) can be calculated as follows (in units of fm2):$ \begin{array}{*{20}{l}} R_{\mathrm{ch}}^{2}=\langle{r_{\mathrm{p}}^{2}}\rangle+0.64\; \mathrm{fm^{2}}. \end{array} $
(3) The first term represents the charge density distributions of point-like protons and the second term is due to the finite size of protons [84]. For mirror pair nuclei, the difference in charge radii (
$ \Delta{R_{\mathrm{ch}}} $ ) can be obtained through the formula mentioned above.The density dependence of symmetry energy can be expanded around the saturation density
$ \rho_{0} $ as follows:$ \begin{equation} E_{\mathrm{sym}}(\rho)\approx{E_{\mathrm{sym}}}(\rho_{0})+\frac{L}{3}\left(\frac{\rho-\rho_{0}}{\rho_{0}}\right)+\frac{K_{\mathrm{sym}}}{18}\left(\frac{\rho-\rho_{0}}{\rho_{0}}\right)^{2}+\dots, \end{equation} $
(4) where L and
$ K_{\mathrm{sym}} $ are the slope and curvature of symmetry energy at nuclear saturation density$ \rho_{0} $ , respectively. These two quantities are defined as$ L=3\rho_{0}\frac{\partial{E_{\mathrm{sym}}(\rho)}}{{{\partial\rho}}}\Large{|}_{\rho=\rho_{0}}, $
(5) $ K_{\mathrm{sym}}=9\rho_{0}^{2}\frac{\partial^{2}E_{\mathrm{sym}}(\rho)}{{\partial\rho^{2}}}\Large{|}_{\rho=\rho_{0}}. $
(6) Further, the isoscalar incompressibility K of symmetric nuclear matter is recalled as
$ K=9 \rho_0^2 \frac{\partial^2E_0(\rho)}{\partial \rho^2}|_{\rho=\rho_0}.$
(7) Here, the quantity
$ E_{0}(\rho) $ is the energy per particle of symmetric nuclear matter [30]. The nuclear incompressibility can be extracted from the measurements of the isoscalar giant monopole resonance (ISGMR) in medium-heavy nuclei [83, 85]. In addition, it is also mentioned that the incompressibility of symmetric nuclear matter can be deduced from the α-decay properties [86]. Table 1 presents the parameters of the Skyrme forces used in this work. The corresponding saturation properties in infinite nuclear matter derived from the Skyrme forces, such as isoscalar incompressibility K, slope parameter L, and symmetry energy$ E_{\mathrm{sym}} $ , are also listed explicitly. Both the slope parameter L and symmetry energy$ E_{\mathrm{sym}} $ at saturation density cover a wide range.K Sets $ t_{0} $ $ t_{1} $ $ t_{2} $ $ t_{3} $ $ x_{0} $ $ x_{1} $ $ x_{2} $ $ x_{3} $ $ W_{0} $ L $ E_{\mathrm{sym}} $ $ K\approx230 $ s3028 $ -2461.903 $ 472.082 $ -530.239 $ 13599.53 1.6830 $ -0.3349 $ $ -1.0 $ 2.6602 124.766 $ -11.2262 $ 28 s3030 $ -2477.013 $ 475.604 $ -533.657 $ 13709.09 1.1408 $ -0.3365 $ $ -1.0 $ 1.8302 117.482 22.8715 30 s3032 $ -2491.849 $ 486.614 $ -579.661 $ 13842.35 0.9962 $ -0.2791 $ $ -1.0 $ 1.5763 128.028 36.2246 32 s3034 $ -2503.455 $ 489.112 $ -591.648 $ 13939.40 0.7308 $ -0.2622 $ $ -1.0 $ 1.1527 126.846 56.1442 34 s3036 $ -2513.951 $ 491.018 $ -615.662 $ 14045.31 0.5457 $ -0.2210 $ $ -1.0 $ 0.8437 128.528 71.5428 36 s3038 $ -2524.594 $ 494.060 $ -635.510 $ 14142.73 0.3550 $ -0.1916 $ $ -1.0 $ 0.5315 129.200 87.6155 38 s3040 $ -2531.688 $ 489.598 $ -625.976 $ 14203.48 0.1249 $ -0.1940 $ $ -1.0 $ 0.1662 122.045 106.0862 40 $ K\approx240 $ s4028 $ -2296.534 $ 515.586 $ -336.464 $ 11786.33 1.7714 $ -0.8491 $ $ -1.0 $ 3.1703 118.803 3.9774 28 s4030 $ -2317.546 $ 532.898 $ -355.019 $ 11907.07 1.2924 $ -0.8449 $ $ -1.0 $ 2.3824 118.263 34.0735 30 s4032 $ -2321.087 $ 520.235 $ -491.504 $ 12164.33 1.2626 $ -0.5755 $ $ -1.0 $ 2.1916 136.989 34.4283 32 s4034 $ -2329.794 $ 510.932 $ -423.708 $ 12179.54 0.8546 $ -0.6759 $ $ -1.0 $ 1.5447 117.932 62.5884 34 s4036 $ -2337.516 $ 507.834 $ -424.568 $ 12253.22 0.7156 $ -0.6664 $ $ -1.0 $ 1.2882 118.414 75.6679 36 s4038 $ -2355.765 $ 523.051 $ -465.145 $ 12389.16 0.3790 $ -0.6244 $ $ -1.0 $ 0.7299 118.238 98.6522 38 s4040 $ -2359.001 $ 513.325 $ -475.563 $ 12466.46 0.2959 $ -0.5827 $ $ -1.0 $ 0.5558 119.406 108.1741 40 $ K\approx250 $ s5028 $ -2157.179 $ 599.608 $ -396.271 $ 10352.38 1.4017 $ -0.9193 $ $ -1.0 $ 2.9016 138.874 33.0037 28 s5030 $ -2155.199 $ 570.378 $ -299.172 $ 10324.29 1.6366 $ -1.0334 $ $ -1.0 $ 3.2711 131.218 30.0248 30 s5032 $ -2172.510 $ 583.512 $ -348.992 $ 10472.92 1.4649 $ -0.9688 $ $ -1.0 $ 2.9140 141.589 43.5871 32 s5034 $ -2179.610 $ 584.069 $ -331.053 $ 10501.79 1.2593 $ -0.9977 $ $ -1.0 $ 2.5371 141.094 60.3202 34 s5036 $ -2195.402 $ 599.442 $ -365.556 $ 10609.25 0.9683 $ -0.9629 $ $ -1.0 $ 2.0020 145.638 80.1762 36 s5038 $ -2205.358 $ 602.093 $ -375.998 $ 10690.19 0.7284 $ -0.9493 $ $ -1.0 $ 1.5517 145.124 97.4925 38 s5040 $ -2214.249 $ 600.714 $ -404.383 $ 10802.96 0.5278 $ -0.9019 $ $ -1.0 $ 1.1569 146.358 112.2079 40 Table 1. Parameters of the forces used in this work, where the parameter
$ \alpha=1/6 $ . Saturation properties of the Skyrme parametrization sets used in this work, such as the incompressibility coefficients K (MeV), slope parameter L (MeV), and symmetry energy$ E_{\mathrm{sym}} $ (MeV) at saturation density$ \rho_{0} $ (fm$ ^{-3} $ ), are also listed. -
The linear correlation between the charge radii differences in the mirror partner nuclei 32Ar-32Si, 36Ca-36S, 38Ca-38Ar, and 54Ni-54Fe and the slope parameter of symmetry energy have been sequentially employed to constrain the EoS of isospin asymmetric nuclear matter [26−28]. In Table 2, the experimental data of
$ R_{\mathrm{ch}} $ and$ \Delta{R_{\mathrm{ch}}} $ for$ A = 32 $ ,$ 36 $ ,$ 38 $ , and$ 54 $ mirror-pair nuclei are given. As mentioned above, the nuclear charge radius is influenced by the pairing correlations [40−42]. Thus, the influence on the correlations between the charge radii difference in mirror partner nuclei and the slope parameter L should be systematically investigated.A $ R_{\mathrm{ch}} $ /fm$ \Delta{R_{\mathrm{ch}}} $ /fm32 Ar 3.3468(62) Si 3.153(12) 0.194(14) 36 Ca 3.4484(27) S 3.2982(12) 0.150(4) 38 Ca 3.4652(17) Ar 3.4022(15) 0.063(3) 54 Ni 3.7370(30) Fe 3.6880(17) 0.049(4) In Fig. 1, plots for the charge radii difference

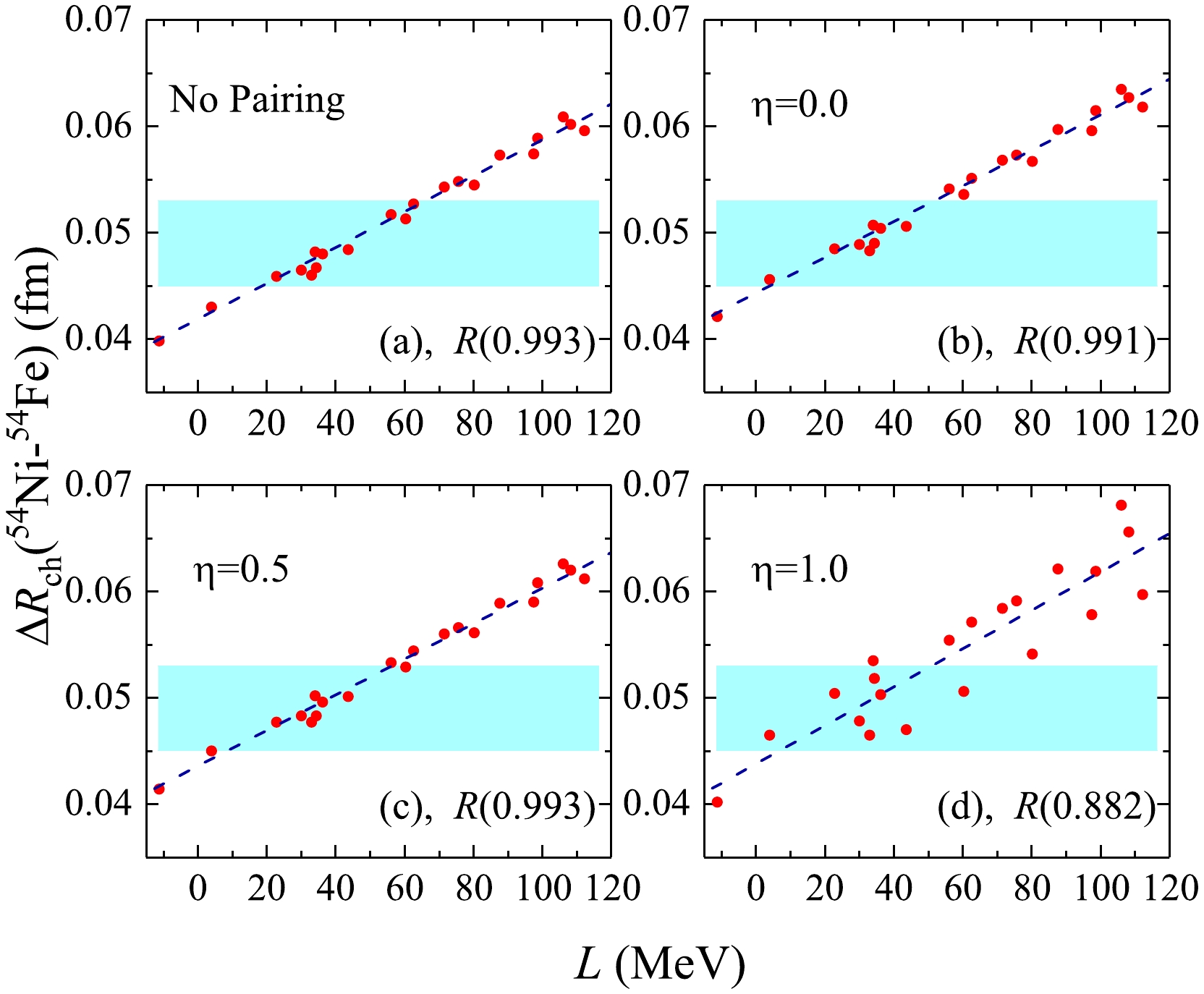

$ \Delta{R_{\mathrm{ch}}} $ in 54Ni-54Fe against symmetry energy slope L are shown for various pairing forces. For the convenience of discussion, the Pearson coefficient R, which is used to measure the degree of correlation between two variables, is employed in our study. Without considering the pairing correlations, the Pearson coefficient R between the$ \Delta{R_{\mathrm{ch}}} $ of mirror partner nuclei 54Ni-54Fe and L is determined to be$ 0.993 $ . The same scenario can also be found in mixed-type pairing forces. For the volume-type pairing force, the Pearson coefficient R is almost equivalent to those for the no pairing and$ \eta=0.0 $ cases. As demonstrated in Ref. [51], the linear correlation between$ \Delta{R_{\mathrm{ch}}} $ and L is decreased by the pairing effects. From Fig. 1, one can find that the surface-type pairing force actually decreases the linear correlation between$ \Delta{R_{\mathrm{ch}}} $ and L in mirror pair nuclei 54Ni-54Fe, where the Pearson coefficient R falls to$ 0.882 $ . Actually, more particles are scattered into the higher single levels under the surface pairing force. This leads to the rather poor correlation between the difference of charge radii of mirror partner nuclei and the slope parameter L.Figure 1. (color online) Charge radii difference
$ \Delta{R_{\mathrm{ch}}} $ of mirror partner nuclei 54Ni-54Fe as a function of slope parameter L is depicted under various pairing forces: no pairing (a), volume type$ \eta=0.0 $ (b), mixed type$ \eta=0.5 $ (c), and surface type$ \eta=1.0 $ (d) pairing forces. The Pearson coefficients R are presented in parentheses. The database is taken from Refs. [28, 34, 35], and the systematic error bands are represented in light blue.For further focusing on the linear correlation between

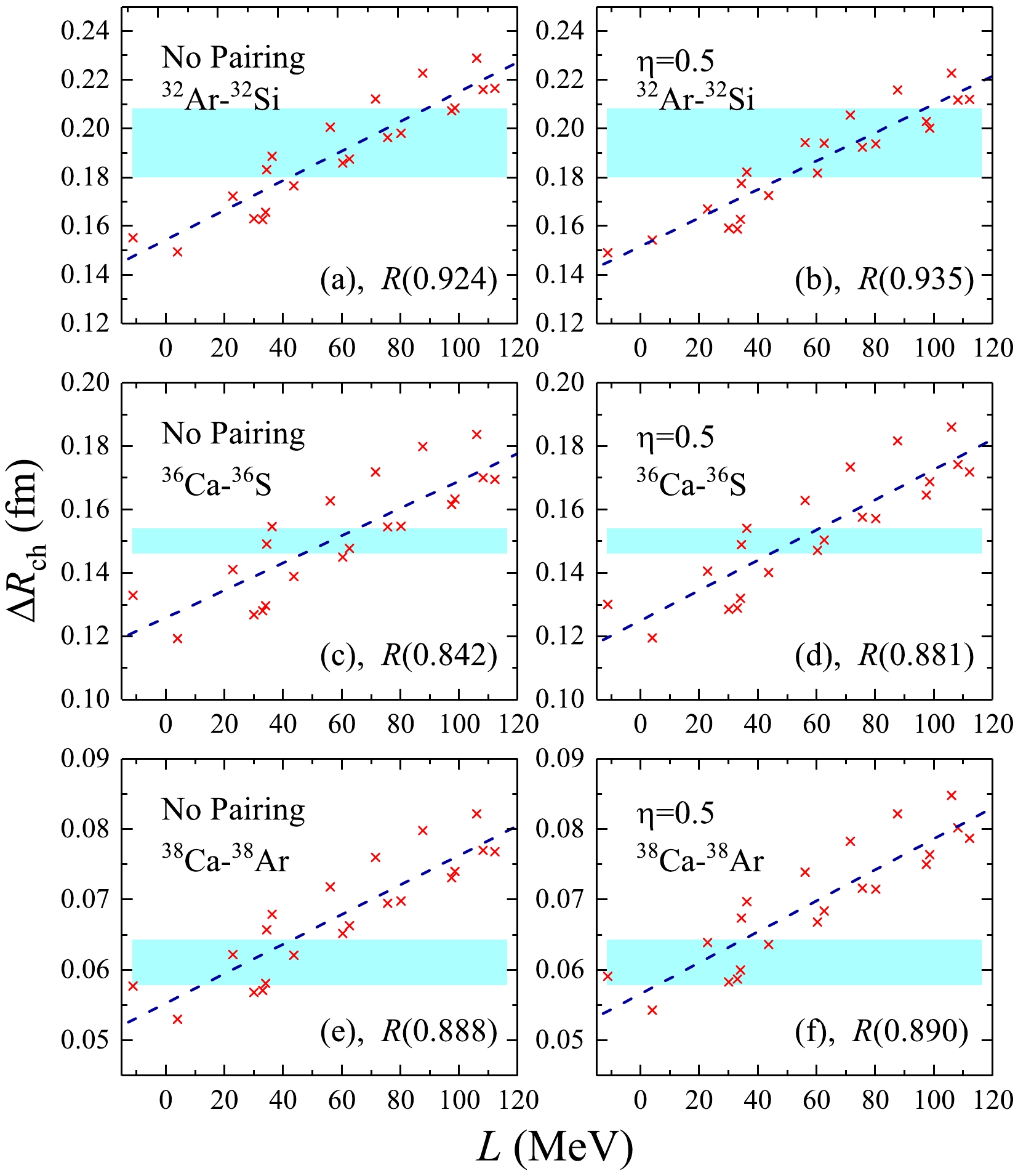

$ \Delta{R_{\mathrm{ch}}} $ and L, the charge radii differences$ \Delta{R_{\mathrm{ch}}} $ of mirror partner nuclei 32Ar-32Si, 36Ca-36S, and 38Ca-38Ar against slope parameter L are shown in Fig. 2. In this figure, clear linear correlations can be observed for these mirror-pair nuclei (32Ar-32Si, 36Ca-36S, and 38Ca-38Ar). For the volume-type pairing force, the Pearson coefficients show almost no change in the mirror partner nuclei 32Ar-32Si, 36Ca-36S, and 38Ca-38Ar, with R values of 0.926, 0.881, and 0.836, respectively. Considering the mixed-type pairing force, the Pearson coefficients R are slightly improved with respect to the no pairing case. Actually, the Pearson coefficients R are rather poor if the surface pairing force is taken into account. The corresponding figures are not shown here, but the Pearson coefficients R for the surface-type pairing force are$ 0.887 $ ,$ 0.791 $ , and$ 0.743 $ for the mirror partner nuclei 32Ar-32Si, 36Ca-36S, and 38Ca-38Ar, respectively. This means that the pairing effect can decrease the linear correlation between$ \Delta{R_{\mathrm{ch}}} $ and L if the pairing interactions are only addressed by the surface-type pairing force.Figure 2. (color online) Charge radii differences
$ \Delta{R_{\mathrm{ch}}} $ of mirror partner nuclei 32Ar-32Si, 36Ca-36S, and 38Ca-38Ar as a function of slope parameter L depicted under no pairing and mixed-type$ \eta=0.5 $ pairing forces. The Pearson coefficients R are presented in parentheses. The database is taken from Refs. [26, 27, 34, 35], and the systematic error bands are represented in light blue.As mentioned in Refs. [24−28], charge radii differences in mirror partner nuclei provide an alternative approach to pin down the isovector components in the EoS of asymmetric nuclear matter. To analyze the relatively clear linear correlation between
$ \Delta{R_{\mathrm{ch}}} $ and L, the mixed-type pairing force is employed in the following discussion. In Fig. 3, the deduced slope parameters L from the differences of charge radii of mirror-pair nuclei 54Ni-54Fe, 38Ca-38Ar, 36Ca-36S, and 32Ar-32Si are drawn by shaping the range covered in Fig. 2. Combing the experimental data, the extracted slope parameter falls into the range of$ L=42.57 $ −$ 50.64 $ MeV. From this figure, one can find that the deduced value of L covers the uncertainty range derived from the mirror charge radii differences [24, 26−28, 32, 88]. Here, the upper limit range of L coming from 32Ar-32Si is 96.65 MeV. This result is overestimated in comparison with that in Ref. [28], where the upper range is confined to$ L\leq60 $ MeV. This may be due to the fact that shape deformation is ignored in our study. Besides, the pairing correlations and the limited Skyrme parameter sets used here may also have an influence on evaluating the interval range of slope parameter L.Figure 3. (color online) Plots of the values of slope parameter L obtained in this work (54Ni-54Fe, 38Ca-38Ar, 36Ca-36S, and 32Ar-32Si) and in previous studies. The partially enumerated values of L from Wang
$ et\; al $ . [24], Brown$ et\; al $ . [26], Pineda$ et\; al $ . [28], An$ et\; al $ . [88], Bano$ et\; al $ . [32], König$ et\; al $ . [28], pygmy dipole resonance (PDR) [89], electric dipole polarizability$ \alpha_{\mathrm{D}} $ [15], GW170817 [90], pion production ($ \pi^{-}/\pi^{+} $ ) [91], and charge exchange spin-dipole (SD) excitations [17], are also presented. The color band represents the slope parameter$ L=42.57 $ −$ 50.64 $ MeV obtained in this study.The value of the symmetry energy slope L extracted from the pygmy dipole resonance (PDR) locates at the interval range of
$L=64.8\pm15.7\;\;{\rm MeV}$ [89]. The covered range is very narrow compared with that of the other cases depicted in this figure. Furthermore, the L obtained in this work can cover the uncertainty ranges derived from the nuclear electric dipole polarizability$ \alpha_{\mathrm{D}} $ [17], dense astrophysical event GW170817 [90], pion production ratios in heavy-ion collisions [91], and charge exchange spin-dipole (SD) excitations [17]. Besides, this deduced result covers most of the range of L presented in Ref. [92], in which the slope parameter captures the range of$L=47.3\pm7.8\;\;{\rm MeV}$ . In summary, the extracted range of slope parameter$ L=42.57 $ −$ 50.64 $ MeV means that the rather soft EoS of the isospin asymmetric nuclear matter can be obtained from the implication of charge radii difference in mirror-pair nuclei.As shown in Fig. 2, the Pearson coefficients become lower for the mirror-pair nuclei 36Ca-36S and 38Ca-38Ar. This suggests that the profoundly theoretical uncertainties are encountered in the calibrating protocol. To clarify this phenomenon, the charge radii differences

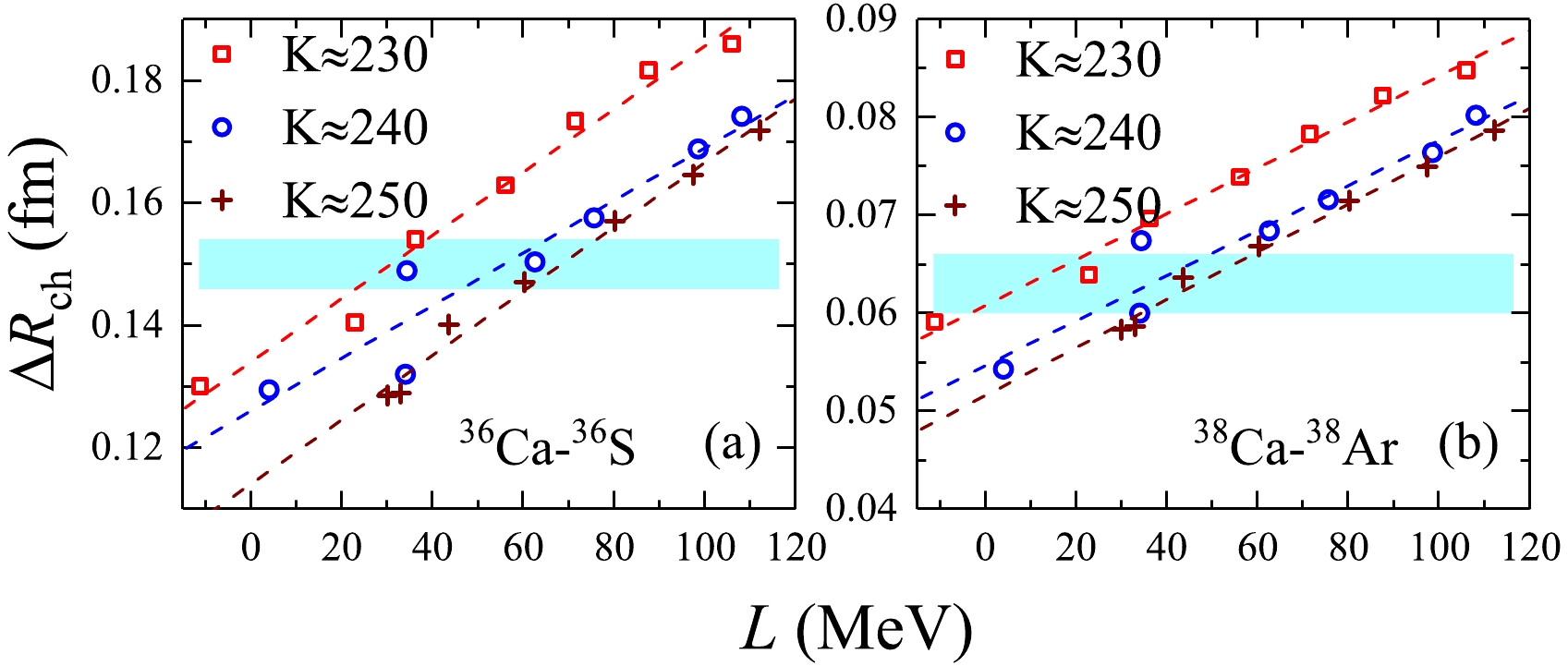

$ \Delta{R_{\mathrm{ch}}} $ of the mirror partner nuclei 36Ca-36S and 38Ca-38Ar against the slope parameter L classified by various isoscalar incompressibility coefficients K are shown in Fig. 4. From both panels of Fig. 4, one can find that the isoscalar incompressibility has an influence on the charge radii difference of mirror partner nuclei. Even from$ K\approx230 $ to$ K\approx250 $ MeV, the deviated range for L is approximately$ 38.0 $ MeV. Here, as shown in Fig. 3, we mention that the influence of the isoscalar incompressibility coefficient cannot be taken into account in evaluating the slope parameter L. Significantly, the isoscalar incompressibility may be indispensable in the calibrating protocol. As is well known, the accurate description of the density-dependent behavior of symmetry energy plays an important role in recognizing various physical mechanisms through nuclear models, such as the production of superheavy elements [93] and cluster radioactivity [94, 95]. In particular, a recent study suggests that the effective proton-neutron chemical potential difference of neutron-rich nuclei is strongly sensitive to the symmetry energy [96]. Therefore, more aspects should be taken into account in constraining the slope parameter L.Figure 4. (color online) Charge radii differences
$ \Delta{R_{\mathrm{ch}}} $ of mirror partner nuclei 36Ca-36S and 38Ca-38Ar plotted as a function of slope parameter L classified by various isoscalar incompressibility coefficients K. The corresponding experimental data are taken from Ref. [26].
