Searching for heavy vector-like B quark via pair production in fully hadronic channels at the CLIC

Extra quarks are supposed to offer solutions to some fundamental issues of the Standard Model (SM) on electroweak symmetry breaking and mass generation of fundamental particles in many new physics models [1−11]. An extra fourth generation of SM-like quarks suffer serious electroweak precision constraints and Higgs search constrains [12−17]. Unlike the quarks of the SM and the sequential fourth generation quarks, the left-handed and right-handed chiral components of the vector-like quarks (VLQs) transform under the same representation of the SM gauge group. This means that VLQs don't get their mass from interactions with the Higgs field, and hence are not excluded by LHC measurements involving the Higgs boson.

The introduction of vector-like quarks (VLQs) in many new physics scenarios is motivated to solve some open questions of the SM [18, 19]. For instance, VLQs are anomaly-free and can naturally stabilize the Higgs boson mass through their loop contributions. Another interesting aspects of VLQs include their introduction can build a realistic model with spontaneous CP violation [20] and provide a alternative solution to the strong CP problem without having axions [21−24]. Additionally, VLQs may contribute to the unification of the coupling constants [25−27] and may provide one of the simplest solutions to the so-called CKM unitarity problem [28−32]. According to the charge assignments under the SM electroweak gauge group, VLQs can be electroweak singlets [T,B], doublets [(X,T), (T,B) or (B,Y)] or triplets [[X,T,B] or [T,B,Y]]. Especially, the vector-like top partner T (VLQ-T) and vector-like bottom quark B (VLQ-B) are essential components in many new physics scenarios, offering solutions to theoretical puzzles while generating interesting collider signatures. The VLQ-T enables a natural cancellation of dangerous quadratic divergences in the Higgs boson mass corrections and could provide a mechanism to interpret the large mass of top [33, 34], establishing it as a fundamental building block in many scenarios. And the VLQ-B is generally predicted in grand unification theory [25−27] and some composite models [18]. Considering single or pair production of VLQs, ATLAS and CMS has carried out extensive searches and analyses for these VLQs (For recent reviews, see Refs. [35, 36]). No evidence for these particles has been found and this has led to lower bounds on their masses above the TeV [35−38].

But this is not the end of the story of VLQs. Current experimental searches for VLQs have mainly considered their decays into Standard Model particles. For example, the ATLAS Collaboration presented a search for the pair production of VLQs in which at least one of the VLQs decays into a leptonically decaying Z boson and a third-generation quark using the full Run 2 dataset corresponding to 139 fb^-1 [38]. Considering only three possible decay modes of $ B\rightarrow tW, bh, bZ $, the lower limits on the masses of VLQ-B (with charge -1/3) are 1.20 TeV and 1.32 TeV for the weak-isospin singlet model and doublet model, respectively [38].

However, VLQs can also decay to new channels in many variant new physics scenarios predicting additional scalars. Recently, exotic decays of the VLQs in different set-ups with rich collider signatures have been considered in the literature [29, 39−56]. These new channels reduce the branching ratios into Standard Model final states, significantly alleviating current mass bounds [57]. Compared with the LHC, clean collision environment and great development of detector techniques make it possible to detecting VLQs or provide complementary constraints on them at future lepton colliders. The introduction of VLQs modifies Higgs coupling vertices and contributes to Higgs production and decay through loop processes. Although the CEPC lacks sufficient collision energy to directly produce TeV-scale VLQs, its high-precision measurements of Higgs boson couplings will constrain VLQ parameter space or hint the existence by detecting deviations at the precision frontier [58−61]. Instead of detecting the contribution of VLQs indirectly, the Compact Linear Collider (CLIC) could produce the VLQs directly. The CLIC is a proposed TeV-scale high-luminosity linear electron-positron collider which has a great potential for new physics detecting [62, 63]. Recently, searching for VLQs at the CLIC has drawn many attentions including pair production [64, 65] and single production studies [66−74].

In this paper, we study the search of TeV-scale VLQ-B quark via the pair production followed by the decays of $ B\rightarrow bZ $ and $ B\rightarrow bh $ at future Compact Linear Collider (CLIC) with center-of-mass of 3 TeV. We take the singlet VLQ-B as a showcase and focus on the subsequent fully hadronic decays of Z and h bosons which has a large branching ratio with the compensation for the relative small production rate. The large mass of VLQ-B will induce the highly boosted bosons Z and h, which tend to manifest as fat-jets. Clean collision environment and relative rare background events with large mass fat-jets at future lepton colliders inspire us to study this channel.

The structure of this paper is as follows. After summarizing the interactions and decay modes of the singlet vector-like B quark in section II, we perform a detailed analysis on the probability of detecting vector-like B via the process $ e^+e^- \rightarrow B\bar{B} $ followed by $ B(\bar{B})\rightarrow bZ $ or bh with subsequent hadron decay of Z and h at CLIC. Finally, summaries and discussions are given in section IV.

The VLQ-B are introduced in many new physics scenarios. Considering only the couples of VLQ-B to the third generation SM quarks, the effective Lagrangian for the singlet VLQ-B is given by [33]:

where g is the $ SU(2)_L $ gauge coupling constant and $ \theta_W $ is the Weinberg angle. The VLQ-B mass $ m_B $ and the relative coupling strength $ \kappa_B $ are regarded as free parameters.

For a heavy weak-isospin singlet VLQ-B, they are generally assumed to decay into a third-generation quark and either a $ W/Z $ boson or a Higgs boson and the relationship of the branching ratios (BRs) of three standard decay modes is

This relationship is a good approximation as expected from the Goldstone boson equivalence theorem [75−79].

The VLQ searches at the LHC generally assume only three standard decay modes with relevant BR relationship or focus a concrete decay channel with a 100% BR. However, the VLQs can natrally decay into light particles in new physics scenarios, such as $ B\rightarrow bS $ where S is an additional scalar or pseudoscalar particle [55, 56]. With the introduction of new exotic decay modes $ B\rightarrow X $, the relationships of BRs can be described as:

where $ \beta_{new} $ is the BR for the new exotic decay channels. In this case, the BRs of the standard modes can become smaller and the LHC search bounds on VLQ-B can be significantly relaxed. In next section, we focus on the decay modes of $ B\rightarrow bZ(bh) $ with the assumption of the existence of exotic decay mode.

At 3 TeV CLIC, the VLQ-B can be pair production with $ \gamma $ or Z mediation. For a VLQ-B with mass 1 (1.4) TeV, the cross section $ e^+ e^- \rightarrow B \bar{B} $ can reach 5.423 (3.075) fb at the CLIC with $ \sqrt{s}=3 $ TeV. Unlike the QCD induced production at the LHC, the production rate of VLQ-B is not large. However, the rare background events, clean collision environment as well as the quick development of detector techniques make the CLIC be a hopeful machine to detecting the signature.

Considering both the decay modes of $ B\rightarrow bh $ and $ B\rightarrow bZ $ with subsequent fully hadronic decays of Z and h bosons, we analyze the prospect for detecing the VLQ-B. In these channels, the large branching ratio of hadronic decay can compenste for the relative small production rate. The large mass of VLQ-B at TeV scale will induce highly boosted bosons. The hadronical decay products of a highly boosted bosons Z or h are more likely to form a fat-jet than two isolated jets. For these fat-jets, taking a large jet radius R could capture all the decay products. The Feynman diagram for the processes are demonstrated in Fig. 1. At the LHC, jet substructure techniques - through delicate analysis of internal jet features - effectively distinguish signal jets (originating from boosted massive particles) from background jets (typically QCD jets) [80]. A large variety of jet substructure methods have been proposed over the last two decades. Early prong-finder algorithms [80], including BDRS algorithm [81], JH TopTagger [82] and N-subjettiness [83], identify multiple hard cores in a jet to distinguish the signals from common QCD jets. It was found that searching for VLQ-B in fully hadronic channels with a large R and jet substructure technique can overcome large combinatorics problem and efficiently suppress the large background events at the LHC [84, 85].

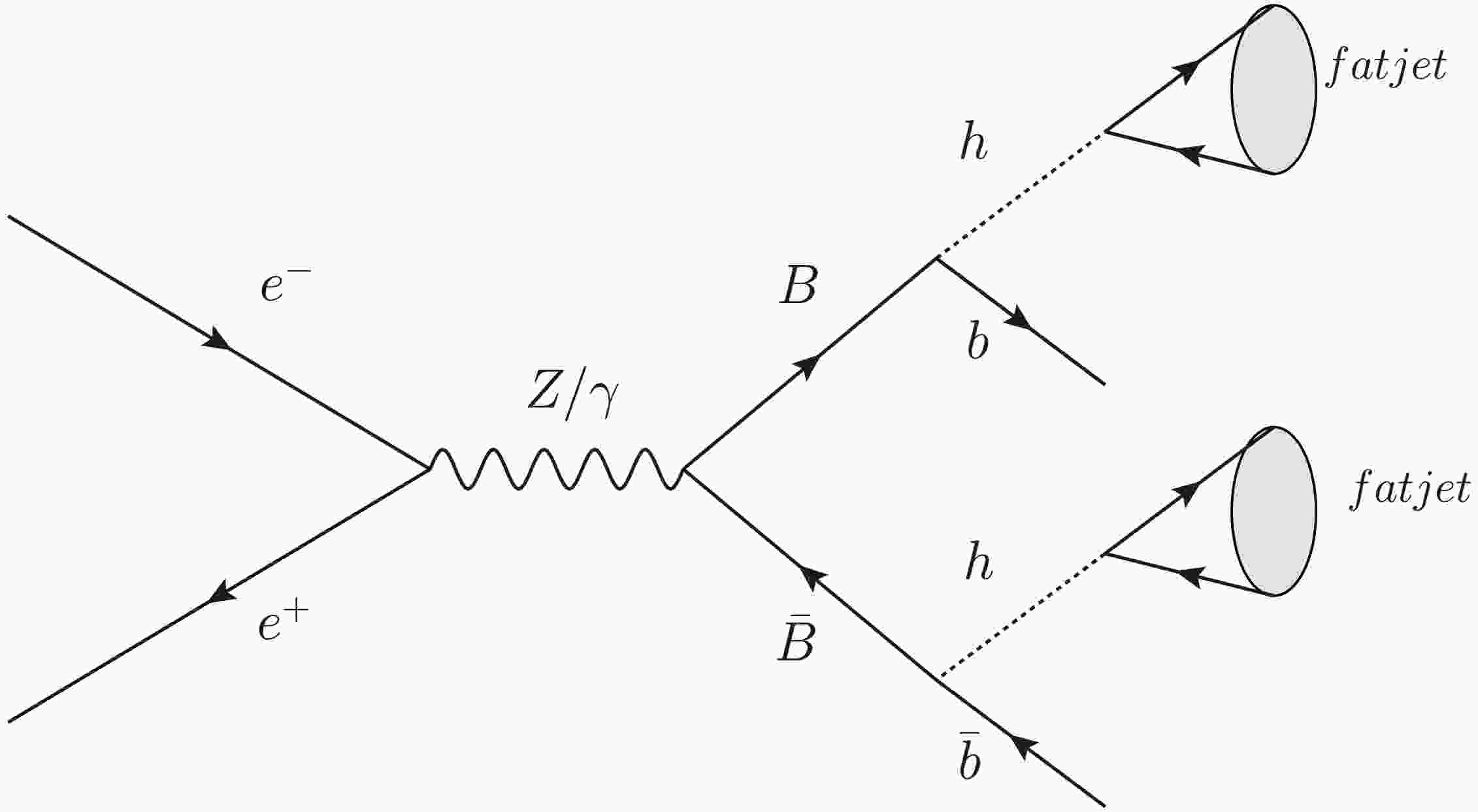

Figure 1.  Feynman diagrams for VLQ-B pair production with subsequent decay into bh at the CLIC.

In this study, we expect that the clean environment and rare boosted fat-jet background events make it possible to detect the VLQ-B in the fully hadronic channels. Our analysis utilizes large-R jets to capture the high-$ p_T $ massive jets without employing jet substructure algorithms. This is because the signal has low production rates and its jets show similar internal substructures to background jets. In this section, we perform Monte Calo simulation and carry out phenomenological analyses in both boosted h channel and boosted Z channel, respectively. The parameter $ \kappa_B=0.1 $ and $ Br(B\rightarrow bh)= Br(B\rightarrow bZ)=0.25 $ is taken in the calculation.

In our Monte Carlo study, the parton-level events for the signals and SM backgrounds are generated by MadGraph5_aMC_v3.3.2 [86] and then are interfaced to Pythia8 [87] for fragmentation and showering. Subsequently, all event samples are fed into Delphes3 [88] program to simulate detector effects. In our analysis, jets are clustered by employing FASTJET package [90]. The Valencia Linear Collider (VLC) algorithm is a sequential jet reconstruction specifically designed for future lepton colliders. Unlike conventional hadron collider algorithms that utilize [transverse momentum, rapidity] basis for reconstruction, the VLC algorithm adopts [energy, polar angle] basis as inter-particle distance [91, 92]. This distinctive approach endows the algorithm with enhanced robustness against background at future lepton colliders. So in this paper, the Valencia Linear Collider (VLC) algorithm is taken with a large jet radius parameter R = 1.0 to capture fat-jets. Finally, a cut-based analysis is performed by using MadAnalysis 5 [93].

In this subsection,we analyze the signal and background events at the 3-TeV CLIC via the process $ e^+e^-\rightarrow B\bar{B} \rightarrow bh\bar{b}h\rightarrow J_hJ_hb\bar{b} $, where $ J_h $ denote the boosted fat-jet from higgs decay. It is expected that the highly boosted higgs jets come from the decay of TeV-scale VLQ-B could be captured with a large jet radius R=1.0.

The dominant SM backgrounds mainly come from the processes:

● $ e^+ e^- \rightarrow W^+ W^- Z $ with $ Z/W^{\pm} \rightarrow j j $.

● $ e^+ e^- \rightarrow W^+ W^- h $ with $ W^{\pm} \rightarrow j j $ and $ h \rightarrow b \bar{b} $.

● $ e^+ e^- \rightarrow t \bar{t} $ with $ t(\bar{t}) \rightarrow W^{\pm} b $ and $ W^{\pm} \rightarrow j j $.

● $ e^+ e^- \rightarrow t \bar{t} h $ with $ t(\bar{t}) \rightarrow W ^{\pm}b $, $ W^{\pm} \rightarrow j j $ and $ h \rightarrow b \bar{b} $.

In following analyses, we don't take b-tagging which is not valid for the discrimination from backgrounds because many background processes have b-jets.

To simulate detector acceptance and provide effective trigger, we choose the basic cuts at parton level for the signals and SM backgrounds as follows:

where $ P_T(j) $ and $ \eta(j) $ are the transverse momentum and pseudo-rapidity of jets. For signal events, the heavy mass of VLQ-B transfer to the large transverse momentum of B's decay products b and h. After selecting events with more than 4 jets in the final state, we resort the final jets with order of mass and present the normalized kinematic distributions for the signal and backgrounds in Fig. 2. For the signal, the hadronic decay products of the boosted higgs bosons generally can be captured by the large jet radius R=1.0. As shown in the figure, a large fraction of the signal events have two massive fat-jets with masses around the higgs mass $ m_h $ and two isolated jets with a low mass. For the backgrounds, there also exist some events with boosted fat-jets due the large collision energy at the CLIC but the mass distributions of fat-jets are very different. Among the backgrounds, it is difficult to find two massive jets around higgs mass. The first massive jet of $ t\bar{t} $ and $ t\bar{t}h $ backgrounds are always a top-jet and only a tiny fraction of $ t\bar{t} $ and $ t\bar{t}h $ events could mimic two higgs-jets. In addition, the transverse momentum of the massive jets of the signal peak around $ m_B/2 $ due to kinematic while the background has a wide distribution range. Furthermore, the WWZ background has very different distribution characters from the signal. Many WWZ events have jets with large rapidity and small $ P_T $.

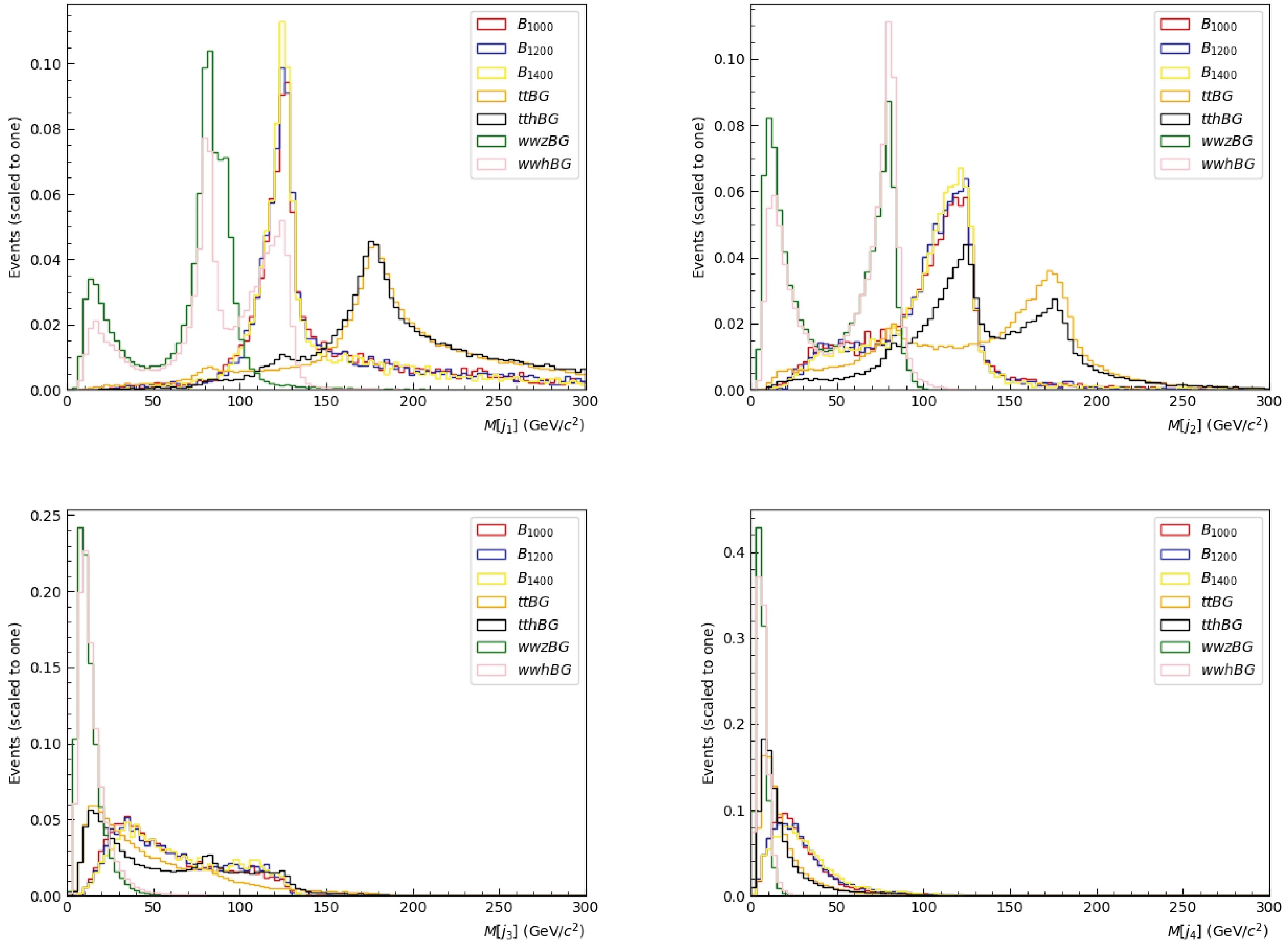

Figure 2.  (color online) The normalized distributions for jet mass of for the signal and backgrounds.

In order to extract the signal from the backgrounds, a set of improved cuts are adopted.

● Cut-1: There are at least four isolated jets and the scalar sum of all transverse momentum of all jets are required larger than 600 GeV, i.e, $ (N(j) \geq 4) $ and $ H_T > $600.

● Cut-2: The first two massive jets have mass in the higgs-mass window, i.e., $ 100<M_{j_{1,2}}<150 $. Besides there are at least two light jets with mass requirement of $ M_{j_{3,4}}<70 $.

● Cut-3: Each massive jet and a light have have a combined reconstructed mass greater than 300.

The cross sections for signals ($ m_B = 1000, 1200,1400 $ GeV) and backgrounds are summarized in Table 1. One can see that all the SM backgrounds are suppressed very efficiently after imposing the cuts, while the signal events are kept in a relative large efficiency. The statistical significance $ S/\sqrt{S+B} $ is also presented in the table. When $ m_B=1200 $GeV, with a luminosity of 5ab^-1, a significance of 6.447 can be achieved. For lighter VLQ-B mass or a larger integrated luminosity, a good significance can be obtained.

Cuts	Signals				Backgrounds
	1000GeV	1200GeV	1400GeV		WWZ	WWh	$ t\bar{t} $	$ t\bar{t}h $
Basic	0.1314	0.118	0.07206		7.532	0.4031	7.792	0.1372
Cut-1	0.09796	0.0754	0.0397		0.5632	0.0395	1.076	0.0401
Cut-2	0.02197	0.0169	0.0088		0.000422	0.00037	0.036	0.00208
Cut-3	0.02005	0.0155	0.0082		0.000166	0.0002684	0.01196	0.00098
$ S/\sqrt{S+B} $	7.747	6.447	3.944

Table 1.  Cut flow of the cross sections (in fb) for the signals with three benchmark masses of VLQ-B quark and backgrounds in boosted higgs channel. The statistical significance(SS) is calculated for an integrated luminosity of 5ab⁻¹

In this subsection, we consider the second possibility, namely when the heavy VLQ-B decays in the mode of $ B \rightarrow Z b $ with following decay $ Z \rightarrow j j $. The topology of Feynaman diagram in this channel is the same as that in above subsection. In this case, the final state is $ J_ZJ_Zb\bar{b} $ where $ J_Z $ represent the fat jet derived from highly boosted Z boson. For this signal, the dominant SM backgrounds come from the same processes as the case of boosted h channel, i.e., $ e^+ e^- \rightarrow W^+ W^- Z \rightarrow 6j $, $ e^+ e^- \rightarrow W^+ W^- h \rightarrow j j j j b \bar{b} $, $ e^+ e^- \rightarrow t \bar{t} \rightarrow j jb j j\bar{b} $, and $ e^+ e^- \rightarrow t \bar{t} h\rightarrow j j b j j \bar{b}b \bar{b} $.

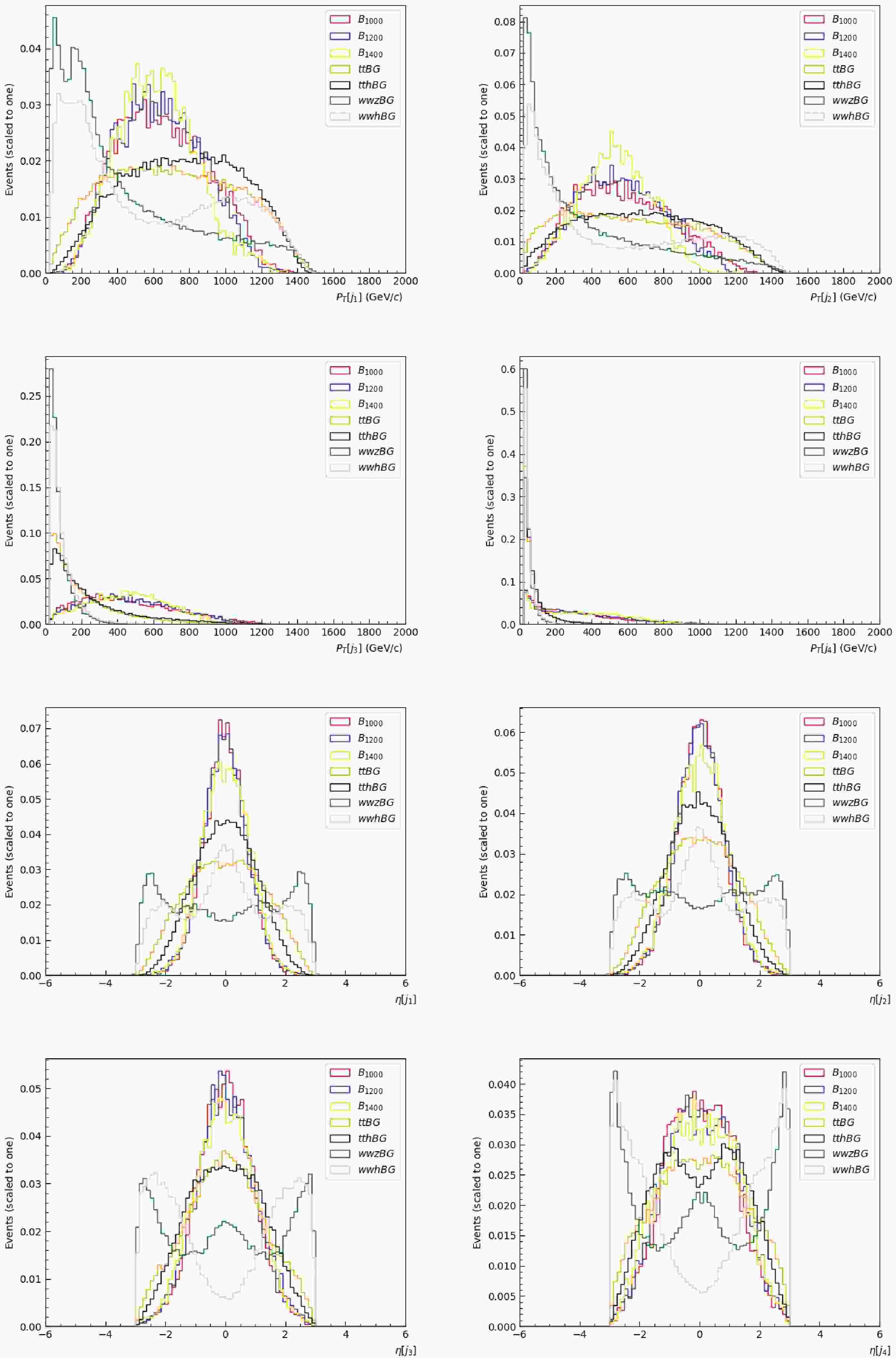

Figure 3.  (color online) The normalized distributions for transverse momentum and pseudo-rapidity of jets for the signal in boosted higgs channel and backgrounds.

In this channel, we cluster the final hadrons with a large jet radius R=0.8 and choose the same basic cuts as those in above subsection. Then we resort the jets with mass ordering. The mass distributions for the mass ordering jets $ j_{i} $ (i = 1 ~ 4) for the signal and backgrounds are presented in Fig. 4. The distributions for transverse momentum and pseudo-rapidity in this boosted Z channel are nearly the same to the case in boosted higgs channel, so we don't show them to avoid redundancy. The dominant background is $ t\bar{t} $ due to its large production rate and decay topology. Although the mass peaks of the first two massive jets for the signal and the $ WWZ $ background are overlap, most of the $ WWZ $ background could be cut-off by a large $ H_T $ cut. In order to suppress the backgrounds, a set of similar improved cuts are adopted as in above subsection:

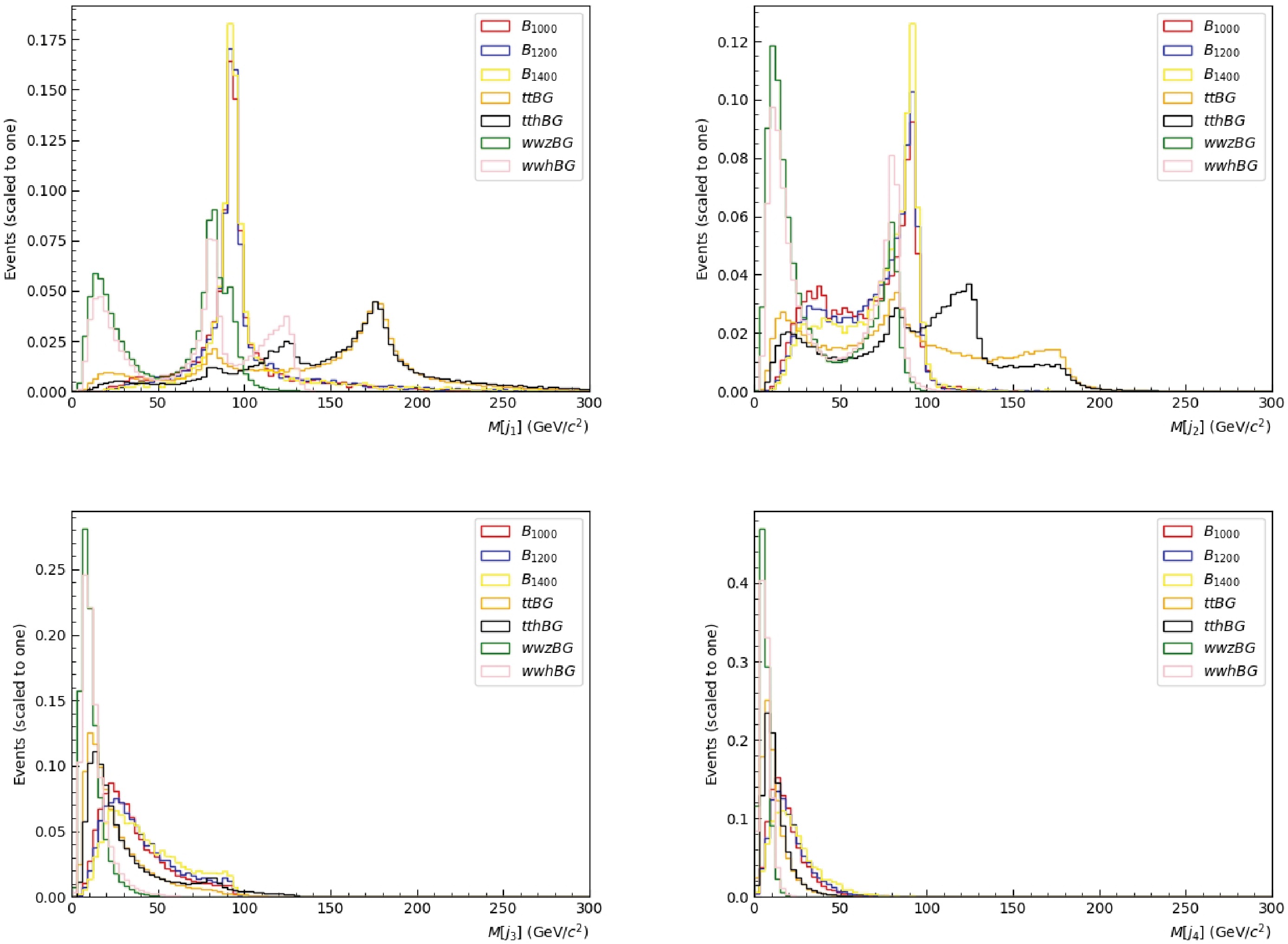

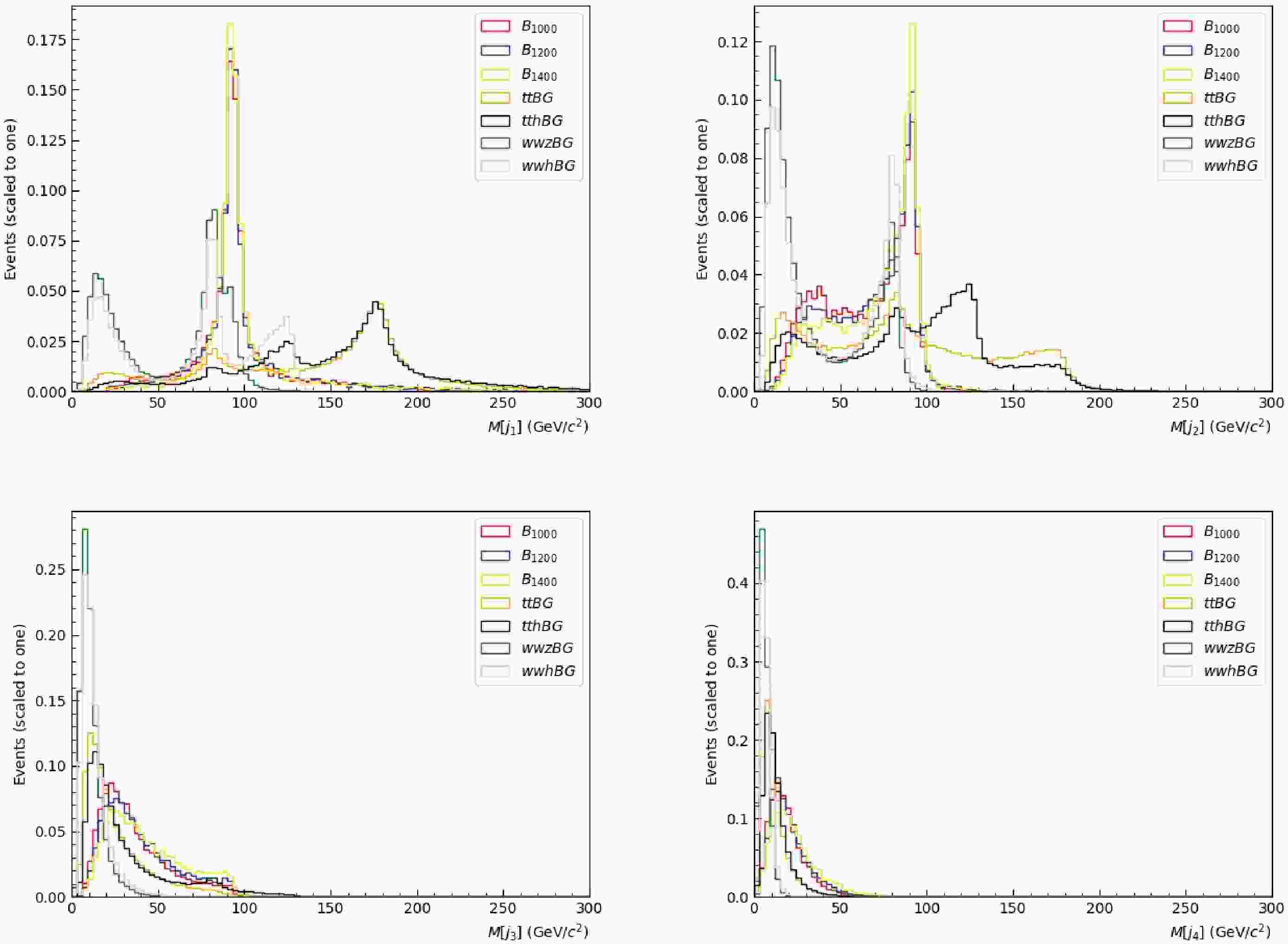

Figure 4.  (color online) The normalized distributions for the mass of first four jets $ M_{j_1} $, $ M_{j_2} $, $ M_{j_3} $ and $ M_{j_4} $, respectively.

● Cut-1: There are at least four isolated jets and the scalar sum of all transverse momentum of all jets are required larger than 600 GeV, i.e, $ (N(j) \geq 4) $ and $ H_T > $600.

● Cut-2: The first two jets have mass in the Z-mass window, i.e., $ 80<M_{j_{1,2}}<100 $. Besides there are at least two light jets with mass requirement of $ M_{j_{3,4}}<70 $.

● Cut-3: Each massive jet and a light have a combined reconstructed mass greater than 300.

● Cut-4: The combined reconstructed mass of the two light jets is greater than 100.

We present the cross sections for the signals with three benchmark masses ($ m_B=1000, \; 1200,\; 1400 $ GeV) and the corresponding backgrounds in Table 2. As shown in the table, after a set of optimized cut, the backgrounds are suppressed efficiently. Taking $ m_B=1200 $GeV, a significance of 6.198 for a luminosity of 5ab^-1 can be achieved. For heavier VLQ-B, the significance is smaller.

Cuts	Signals				Backgrounds
	1000GeV	1200GeV	1400GeV		WWZ	WWh	$ t\bar{t} $	$ t\bar{t}h $
Basic	0.09796	0.08189	0.05245		7.532	0.4031	7.792	0.1372
Cut-1	0.09139	0.07474	0.04559		2.3128	0.1425	3.355	0.1057
Cut-2	0.01962	0.01753	0.01161		0.2564	0.007156	0.0742	0.00209
Cut-3	0.0172	0.01533	0.01033		0.1005	0.00424	0.0111	0.0005328
Cut-4	0.0169	0.01499	0.01018		0.002448	0.00148	0.01001	0.000464
$ S/\sqrt{S+B} $	6.7514	6.198	4.58

Table 2.  Cut flow of the cross sections (in fb) for the signals with three benchmark masses of VLQ-B quark and backgrounds in boosted Z channel. The statistical significance(SS) is calculated for an integrated luminosity of 5ab⁻¹

With the introduction of exotic decay modes, the braching ratios of standard decay modes can be reduced and current limits from ATLAS and CMS can be relaxed. In this paper, considering two kinds of decay modes $ B\rightarrow bZ $ and $ B\rightarrow bh $, we have studied the search of TeV-scale weak-singlet VLQ-B quark in fully hadronic channel via the pair production at 3 TeV CLIC. The large mass of VLQ-B will induce highly boosted bosons Z and h, which tend to manifest as fat-jets. We perform a full simulation for the signals in both boosted higgs channel and boosted Z channel. After choosing a large jet radius and employing a set of cuts, it is found that clean collision environment and rare fat-jets background events at the CLIC make it possible to extract the signals in some parameter space. Taking $ m_B=1.2 $ TeV (1.4 TeV) as an example, a signal significance 6.447 (3.944) can be achieved with an integrated luminosity of 5ab^-1 in booted higgs channel. For the signal in boosted Z channel, a significance 6.198 (4.58) can be achieved with the same luminosity.

Here, we further consider the CLIC detecting sensitivity on the branching ratios Br($ B\rightarrow bh $) and $ Br(B\rightarrow bZ) $. In Fig. 5, we plot the 95% CL exclusion limits and 5$ \sigma $ sensitivity reaches for boosted higgs channel and boosted $ Z $ channel at the 3 TeV CLIC with an integrated luminosity of 5ab^-1. For the boosted higgs channel, the VLQ-B can be excluded in the region of Br($ B\rightarrow bh $) $ \in [0.107, 0.25] $ and $ m_B \in [1000, 1480] $ GeV with an integrated luminosity of 5ab^-1. For the boosted Z channel, the VLQ-B can be excluded in the region of Br($ B\rightarrow bZ $) $ \in [0.119,0.25] $ and $ m_B \in [1000, 1490] $ GeV with an integrated luminosity of 5ab^-1. As shown in the figure, fully hadronic channels and leptonic channels [64] at the CLIC have similar performance in VLQ-B searches. For comparison, we also present the observed 95% CL exclusions limits at the 13 TeV LHC, the predicted exclusions at the future HL-LHC with an integrated luminosity of 3000fb^-1, as well as the exclusions in leptonic channels from previous study [64]. As shown in the figure, the future 3TeV CLIC with an integrated luminosity of 5ab^-1 could provide better sensitivity than the current LHC searches in the mass range of $ 1120<m_B<1480 $. And even better sensitivity than the future HL-LHC in some large mass range. As for the discovery prospects, a VLQ-B in the mass range from 1TeV to 1.4TeV with Br($ B\rightarrow bZ)>0.185 $ could be discovered at future 3TeV CLIC.

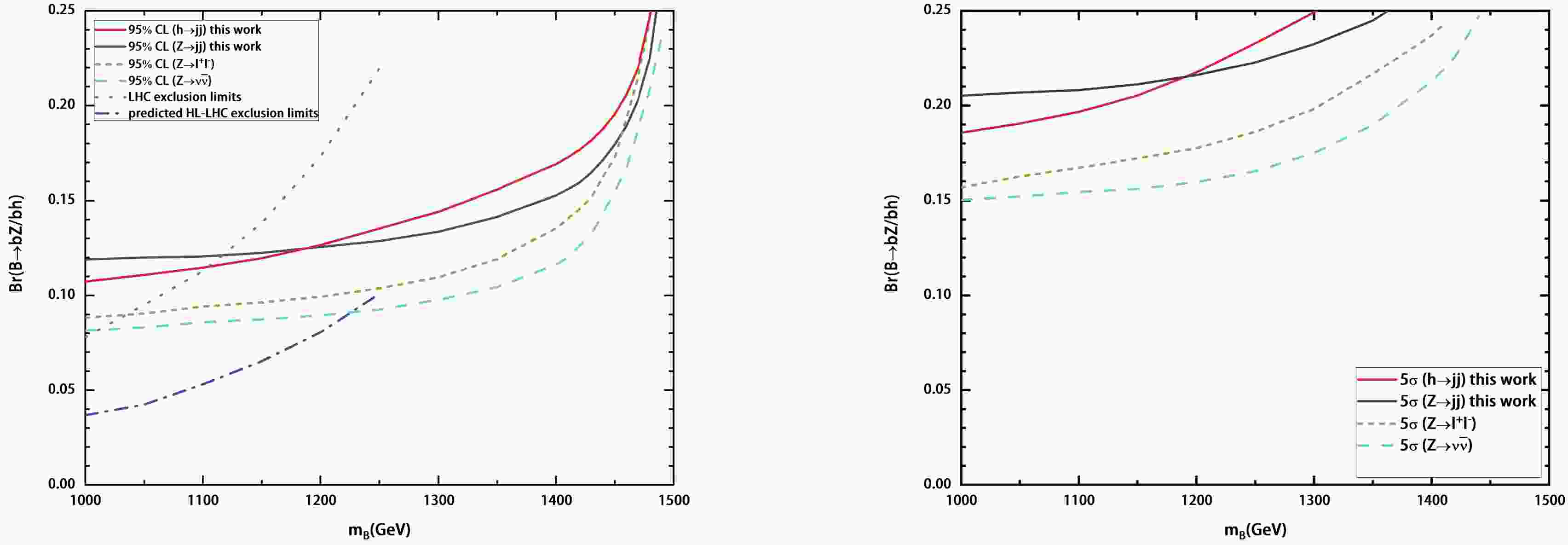

Figure 5.  (color online) Exclusion limits (at 95% CL) and discovery prospects (at 5$ \sigma $) sensitivity reaches for boosted higgs channel and boosted Z channel at the 3 TeV CLIC with an integrated luminosity of 5ab⁻¹

In addition, it is remarked that the analysis in this paper also applies to the moun collider with $ \sqrt{s}=3\; $ TeV. For the 10 TeV muon collider, although the large phase space is opened, the cross section for pair production is significantly suppressed due to the s-channel suppression. For $ m_B=1.5$ TeV (2.5TeV), the cross section can only reach 0.5345(0.5231) fb. Generally speaking, it is not hopeful to detecting the TeV-scale VLQs at future 10 TeV muon collider due to limited production rates.
